Supply the turnkey project&design for customer
 |
| Place of Origin: | China |
| Brand Name: | Fill Drink |
| Certification: | CE ISO |
| Model Number: | PM-RT18000 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 42000USD |
| Packaging Details: | wood packing |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Machine Material: | SUS 304 | Warranty: | 1 Years |
|---|---|---|---|
| After-sales Service Provided: | Online Support,Video Technical Support,commissioning And Training,Field Maintenance And Repair Service | Production Capacity: | 18000 BPH (500ml) |
| Dimension: | L3200 × W1200 × H2070 | Name: | Automatic 18 Heads Rotary OPP Hot Glue Labeling Machine |
| Color: | As Requested | Power: | Three-phase 380V 50 Hz 8000W |
| Applicatioin: | Beverage/Beer/Juice/Cola/PET Water Bottles | Packing Material:: | PE Film |
| High Light: | Rotary OPP Hot Melt Labeling Machine,Hot Melt Labeling Machine 18 Heads,18000BPH hot glue labeler |
||

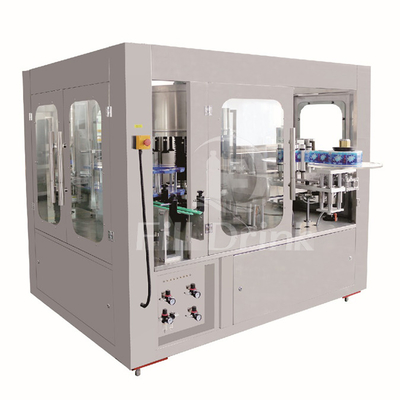

High speed Automatic 18 Heads 18000BPH Rotary OPP Hot Melt Labeling Machine
Features:
1. Main body is made by SUS304 stainless steel & high grade aluminum alloy.
2. Labeling head is driven by advanced step motor which is imported from Japan.
3. All the eye is advanced photo detector made in Japan.
4. PLC control system is equipped with human interface, including 60 groups of memory unit.
5. Labeling position and height is adjustable.
6. The transportation height can be adjusted by height of production line.
7. Be able to connect with conveyor and production line
8. Transparent label monitor for option.
Process:
Infeed bottle → pre-position →label cutting → gluing → labeling→ label by press out → finish
Line Work
The details of product
Technical Parameter
| No. | Item | Data |
| 1 | Power supply | Three-phase 380V 50 Hz 8000W |
| 2 | The total length of equipment | 3000mm |
| 3 | Equipment width | 2500mm |
| 4 | Conveyor speed | 30m/min |
| 5 | The method of speed adjustment | uninterrupted - adjust rate |
| 6 | The largest Speed of labels feed | maximum speed of 100 meters labels / min |
| 7 | The largest speed of labeling | 18000 BPH (500ml) |
| 8 | Labeling accuracy | ± 1mm |
| 9 | Integrated Labeling accuracy | ± 1mm |
| 10 | Product Size | 500ml |
Service:
1. we can send you the video of the running machine.
2. you are always welcome to come to visit our factory, and you may see the operation of the machines here . We will make the arrangement to pick you up when you come .
3. If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory.
Customized service
1. we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2. at the same time we will give you our professional suggestion .
After-sales service
1. we will provide the bill of load on time to make sure you can get the machine quickly
2. when you finish the Preparation conditions ,our engineer will go to your factory for the installation, testing and also training .
3. we provide one year warranty with spare parts free.
