Supply the turnkey project&design for customer
 |
| Place of Origin: | China |
| Brand Name: | Fill Drink |
| Certification: | CE ISO |
| Model Number: | DCGF24-24-8 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 58000USD per set |
| Packaging Details: | wood packing |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Voltage: | Customized | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Driven Type: | Electric |
| Type: | Filling Machine | Packaging Type: | Bottles |
| Application: | Beverage | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
| Packaging Material: | Wood | Weight: | 6500KG |
| Dimension(l*w*h): | 3100x2200x2800mm | Warranty: | 2 Years |
| Power: | 5KW | Material: | SUS304 |
| Capacity: | 6000BPH | Name: | Complete Carbonated Soft Drink Production Line |
| Bottle Type: | PET Plastic Bottle,Glass Bottle | Product Name: | Bottled Drinking Water / Juice / Carbonated Drinks Filling Machine |
| Function: | Carbonated Drink Washing Filling Capping Process | ||
| High Light: | 6000BPH carbonated soft drink filling machine zhangjiagang filldrink,fully automatic soda making machine zhangjiagang filldrink,soft drink canning machine zhangjiagang filldrink |
||
6000BPH Plastic Bottle Carbonated Filling Line With Precise Filling Valve
Product Overview
we supply the complete carbonated drink filling and package solution ,from water treatment reverse osmosis system ,Beverage blending & mixing system, glass bottle washing & filling & sealing monoblock machine ,bottle warmer ,pasteurizer tunnel ,blow dryer ,carton package ,film package system ,which is widely used for the beverage ,beer ,juice industry and so on.
Washing filling capping three in one
The machine is mainly used in the water filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling mineral water and purified water in bottles made of polyester and plastics.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. Therefore the output and benefit of the machine is higher than the machines of the same specifications. The advanced Mitsubishi programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably . It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, The machine is an idea-preferred equipment for beverage makers.
Technical parameter:
| Number of rinsing positions | 24 |
| Number of filling positions | 24 |
| Number of capping positions | 8 |
| Capacity | 6000bottles/hour based on 500ml |
| Application bottle & cap | PET bottle & Screw cap |
| Suitable bottle height (mm) | 160-320mm |
| Suitable bottle diameter (mm) | ¢50-¢115 |
| Power of main motor (KW) | 5.5 |
| Dimension(mm) | 3100x2200x2800 |
| Weight(kg) | 6500 |

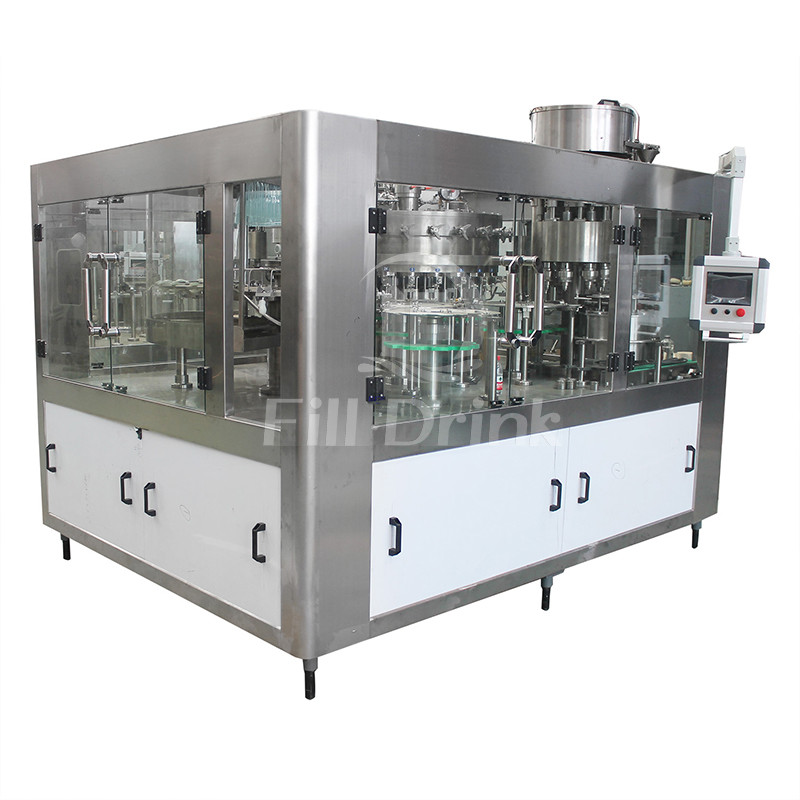

The images of product
A: WHAT'S THE ORDER PROCESS?
B: Inquiry-- Provide us all your clear requirements.
Quotation-- Official quotation form with all clear specifications.
Payment terms-- T/T 30% in advanced, balanced before shipment. We can talk about this when deal.
Shipping-- By sea, Detailed picture of package will be provided.
A: HOW CAN I INSTALL MY MACHINE WHEN IT ARRIVES?
B: We will send our engineer to go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines. Certifications
AFTER-SALES SERVICE
1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2. When you finish the preparation conditions, our fast and professional aftersales service engineer team will go to your factory to install the machine, give you the operating manual, and train your employee untill they can operate the machine well.
3. We often ask feed back and offer help to our customer whose machine have been used in their factory for some time.
4. We provide one year warranty.
5. Well-trained & experienced staff are to answer all your inquires in English and Chinese.
6. 24 hours for engineer response ( all services part 5days in customer hand by Intl’ courier).
7. 24 months guarantee and life-long technical support.
8. Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
