2L Automatic Juice Bottle Filling Machine 4000BPH Back Flow Tank

2L Automatic Juice Bottle Filling Machine 4000BPH Back Flow Tank

  • 2L Automatic Juice Bottle Filling Machine 4000BPH Back Flow Tank
  • 2L Automatic Juice Bottle Filling Machine 4000BPH Back Flow Tank
  • 2L Automatic Juice Bottle Filling Machine 4000BPH Back Flow Tank
2L Automatic Juice Bottle Filling Machine 4000BPH Back Flow Tank
Product Details:
Place of Origin: China
Brand Name: Fill drink
Certification: CE ISO
Model Number: CGF12-12-4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 15400 USD
Packaging Details: Wood
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Automatic Grade: Automatic Driven Type: Electric
Condition: New Type: Filling Machine
Application: Beverage After-sales Service Provided: Engineers Available To Service Machinery Overseas
Packaging Material: Wood Voltage: Can Be Designed
Packaging Type: Bottles Weight: 3500kg
Power: 4KW Warranty: 1 Year
Name: CE SGS ISO Juice Filling Machine Capacity: 4000BPH
Material: SS304 Product Name: Complete Production Line For Bottled Juice
Filling Material: Juice Processing: Filling Machine
High Light:

2L Juice Bottle Filling Machine

,

automatic bottle filling machine 4000BPH

,

bottle juice filling machine 4000BPH

Back Flow Tank CGF12-12-4 Juice Filling Machine With 2L Capacity​



Product Description:

   The juice filling machine works with back flow tank and vaccum system.Using the wind sent access and move wheel in the bottle directly connected technology, canceled screw and conveyor chains, this enable the bottle change more easier.Bottle transmission adopts clip bottle neck technology, there is not too much spare parts need to be changed when we use different bottle shape.

Production Advantage

  • Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
  • Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
  • The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
  • High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
  • Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.



Fill drink supply and manufacture the followings machines



Model CGF12-12-4
Capacity (B/H) 4000
Bottle size Neck :φ50-100mm:Height:150-320mm
Water Pressure 0.18-0.25Mpa
Washing Water consumption(kg/h) 1000
Washing station 12
Dripping station 2-2-2
Filling precision <+1MM
Air pressure 0.5Mpa
Air consumption 0.3m3/min
Power(kw) 4motor
Weight(kg) 3500
Dimension(L*W*H) 2350*1850*2450 mm

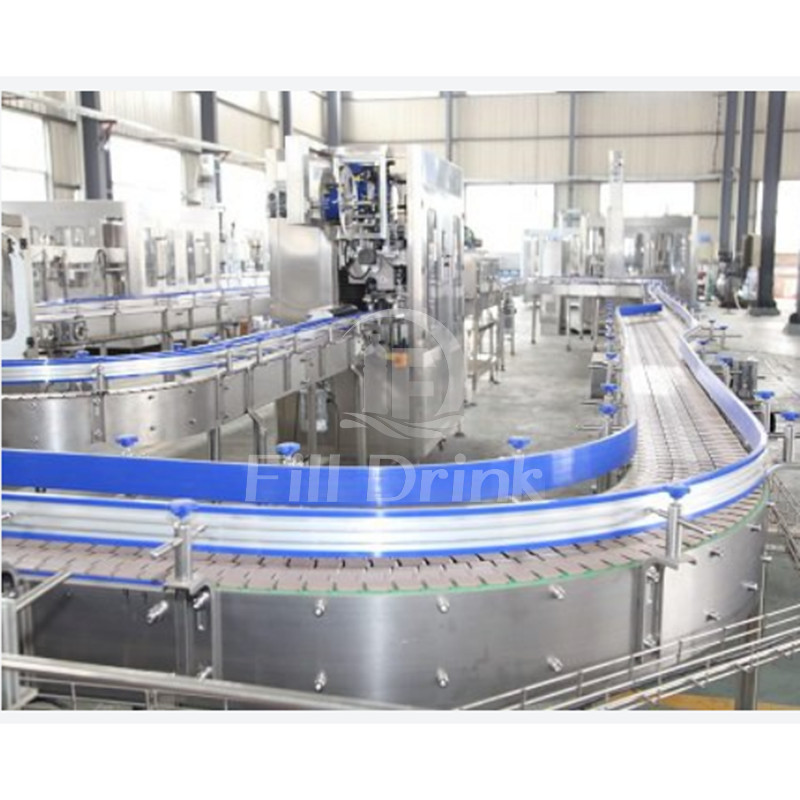

Product Photos:

2L Automatic Juice Bottle Filling Machine 4000BPH Back Flow Tank 0

2L Automatic Juice Bottle Filling Machine 4000BPH Back Flow Tank 1

2L Automatic Juice Bottle Filling Machine 4000BPH Back Flow Tank 2





After sale service

1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.

2. We supply below necessary documents with the machine:

    a. Machine layout

    b. Electricity diagram

    c. Machine certificate

    d. General manual book/maintenance book
