Supply the turnkey project&design for customer
 |
| Place of Origin: | China |
| Brand Name: | Fill Drink |
| Certification: | CE ISO |
| Model Number: | QGF-1200 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 42000USD |
| Packaging Details: | Wood packing |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Condition: | New | Application: | Water |
|---|---|---|---|
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Product Name: | 5 Gallon Water Filling Machine | Capacity: | 1200BPH |
| Color: | Customer Choice | Material: | SUS304 |
| High Light: | 1200BPH 5 Gallon Water Filling Machine,5 gallon water filling machine 1200BPH,gallon jug filling machine Decapping Head |
||
Eight Road And Double Decapping Head 5 Gallon Water Bottling Equipment
1. Automatic de-capper
This machine is driven by cylinder, controlled by PLC; Automatic working by barrel checking;
De-capping head is composed by claw device and cylinder, de-capping head position can move up and down, claw device can be adjusted slightly to be suitable for different caps.
2. Automatic rotary jar filler
Bottle fed by a star wheel into the bottle filling machine, filling area to reach the starting point, the roller bottles along the cam will hold up, start filling valve for filling a bottle, and with the body, etc. together synchronously rotating; bottles arrive irrigation end point loading zone, to reach the cam roller bottles with low self-reset Close filling valve, filling the end of the barrel with the star wheel sent out of the bottle filling machine.
3. Automatic neck labeling machine
Adopting model group design, module controlled; Achieve veracity and fast sleeving.
With the good quality touching operation screen, achieving operation by finger, easy and shortcut.
It is a high automatic packing machine. Just one person handles, easy operation.
Higher safely and stability for operation and saving time of manpower.
4. Steam shrink Machine
Whole SUS304 construction, including electrical boiler to generate steam and shrink tunnel especially for barrel cap film;

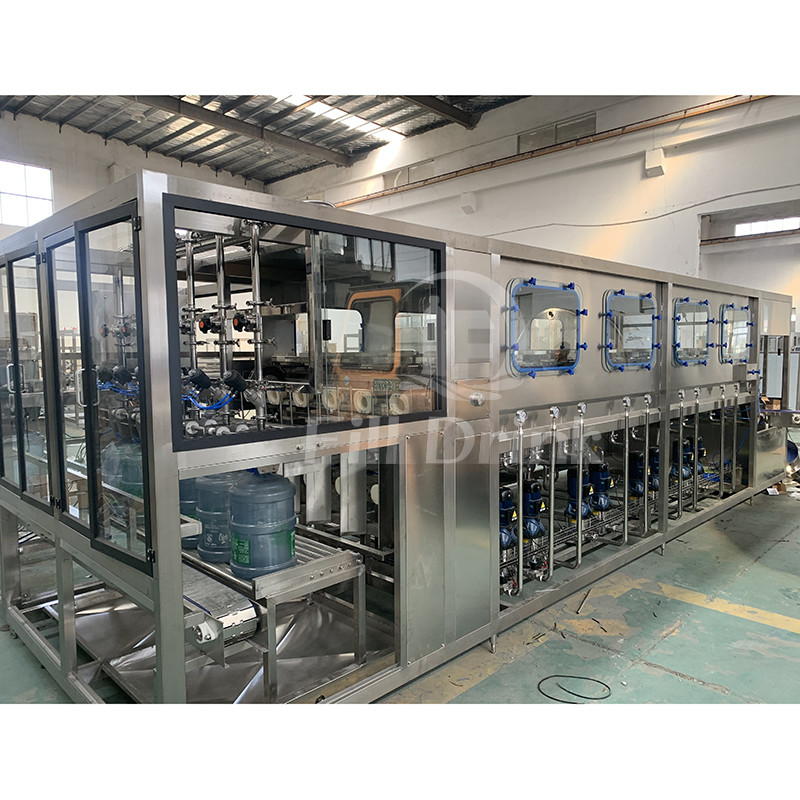

Product Photos:
Product Paramenters:
| Model | QGF-120 | QGF-300 | QGF450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling Head | 1 | 2 | 3 | 4 | 6 | 8 |
| Capacity(barrels/h) | 60-120 | 120-300 | 300-450 | 450-600 | 600-900 | 900-1200 |
| Barrel size(mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
|
Gas consumption(m3/min) |
0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Total power(KW) | 1.5 | 3.8 | 5.5 | 7.5 | 9.8 | 13.5 |
| Weight(KG) | 680 | 1500 | 2100 | 3000 | 3500 | 4500 |
Our Service:
The sample service
1. We can send you the video of the running machine.
2. Your are welcome to come to visit our factory,and see the machine running.
Customized service
1. We can design the machine according your requirements,at the same time we will give you our prefessional suggestion,as you know we have been in this industry for many years.
After-sales service
1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.
2. When you finish the Preparation conditions,our fast and professional after-sales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee untill they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4. We provide one year warranty
5. Well-traned & experienced staff are to answer all your inquiries in English and Chinese.
6. 24 hours for engineer response.
7. 12 Months guarantee and life-long technical support.
8. Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
