|Place of Origin:||China|
|Brand Name:||Fill Drink|
|Minimum Order Quantity:||1set|
|Packaging Details:||Wood packing|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram|
|Supply Ability:||100 sets per month|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Weight:||4.5 Tons|
|Product Name:||Automatic PET Bottle Blowing Machine For Water Filling Plant||Cavity:||2 Cavity|
|Capacity:||2200-2800BPH||Name:||Automatic Pet Bottle Blowing Machine Price|
Hot Juice Bottle Blow Machine zhangjiagang filldrink,
Bottle Blow Machine Automatic zhangjiagang filldrink,
blowing pet bottle machine 500ML zhangjiagang filldrink

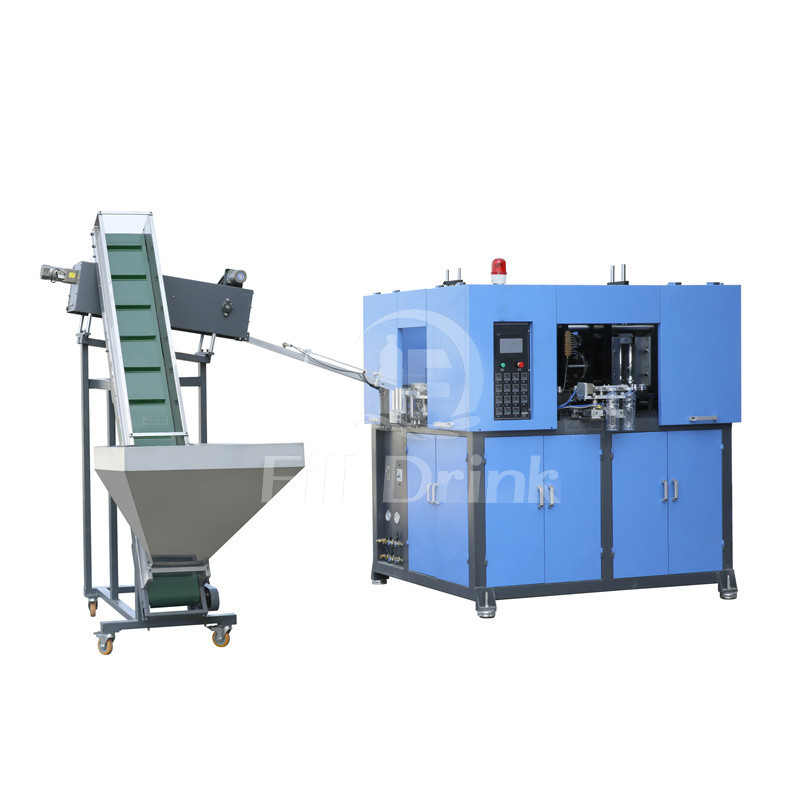

Automatic 1 Preform 500ML-2L Heater Juice Bottle Blowing Machine
1. Before each shift starts, lubricating oil must be added to the moving parts once (manipulator, manipulator rail, opening and closing mold rail, etc.).
2. Swing arm can be added once a week, and large chain and small chain of heating machine can be added once a month. Check regularly whether the reducer of the host machine and the reducer of the heating machine are short of oil. The bearing of the host machine can be added once every three months.
3. Before production, check whether the moving parts are firm, whether the screws are loose and fall off, especially where the impact force is strong and whether the transmission part is abnormal.
4. Check whether high pressure air source, low pressure air source, power supply and water source are normal.
5, check the emergency stop switch, safety door switch, protection device to detect whether the switch is normal.
6. Check whether the heating head, upper embryo and embryo dropping part work normally.
7, check whether the lamp is damaged, broken, if there is abnormal need to be replaced in time.
8. Check whether the pneumatic components leak and whether the action is sensitive.
9. When the magnetic valve of the automatic bottle blowing machine is abnormal, it should be cleaned in time (3.5 million yuan for each bottle blowing).
|Bottle type specification||Cavity||2|
|Bottle mouth maximum overall diameter||20-38mm|
|Bottle biggest diameter||110mm|
|Bottle maximum height||365mm|
|Power specifications||Light tube quantity||32pcs|
|Light tube power||1KW|
|Maximum heating power||24KW|
|All electric machine installation||27KW|
The sample service
1. We can send you the video of the running machine.
2. Your are welcome to come to visit our factory,and see the machine running.
1. We can design the machine according your requirements,at the same time we will give you our prefessional suggestion,as you know we have been in this industry for many years.
1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.
2. When you finish the Preparation conditions,our fast and professional after-sales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee untill they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4. We provide one year warranty
5. Well-traned & experienced staff are to answer all your inquiries in English and Chinese.
6. 24 hours for engineer response.
7. 12 Months guarantee and life-long technical support.
8. Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
