Supply the turnkey project&design for customer
 |
| Place of Origin: | China |
| Brand Name: | Fill Drink |
| Certification: | CE ISO |
| Model Number: | QGF-120 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | 4300USD |
| Packaging Details: | Wood packing |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Condition: | New | Application: | Water |
|---|---|---|---|
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Weight: | 4.5 Tons | Product Name: | 5 Gallon Water Filling Machine |
| Capacity: | 100BPH | Color: | Customer Choice |
| Material: | SUS304 | ||
| High Light: | Monoblock rinser filler capper,rinser filler capper SUS304,5 Gallon Water Filling Machine SUS304 |
||
Monoblock Rinser-Filler-Capper 5 Gallon Water Filling Machine With Full SUS304
Product Description:
5 gallon water machine integrate rinsing , filling and capping , suitable for filling the pure water or the mineral water in 3 or 5 gallon . The filling speed ranges from 100BPH to 1500BPH , rinser-filler-capper monoblock , automatic cap loading machine , bottle outside washer , bottle inside washer , decapper , heating shrink tunnel , conveyor system , complete line control system.
Principle:
This machine is integrated with jar washing-filling-capping functions together;Worker loads empty jar on jar holder manually, the jar holder with jar will be transferred in advance for jar washing, the transmission force is by gear cylinder.Washing will be devided into 3 parts, 1st process is by disinfectant fluid, 2nd process is by recycle water washing, 3rd process is by pure water;After washing, the jars will be falling down on angle plate from jar holder by transmission chain with gravity force; Then the jars will be pushed by pushing cylinder to under filling head, then filling start; Filling volume can be controlled by filling time set up. The filled jars will be pushed to under capping head by empty jars afterwards. Worker put lot of disordered caps into cap loader, cap loader will sort cap automatically to load down into cap rail. When filled bottles passing under capping head, cap will fall down onto jar neck, then capping cylinder will do the capping automatically by cap pressing cylinder.
Product Paramenters:
| Model | QGF-120 | QGF-300 | QGF450 | QGF-600 | QGF-900 | QGF-1200 |
| Filling Head | 1 | 2 | 3 | 4 | 6 | 8 |
| Capacity(barrels/h) | 60-120 | 120-300 | 300-450 | 450-600 | 600-900 | 900-1200 |
| Barrel size(mm) | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 | 270*490 |
| Gas pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| Gas consumption(m3/min) | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Total power(KW) | 1.5 | 3.8 | 5.5 | 7.5 | 9.8 | 13.5 |
| Weight(KG) | 680 | 1500 | 2100 | 3000 | 3500 | 4500 |

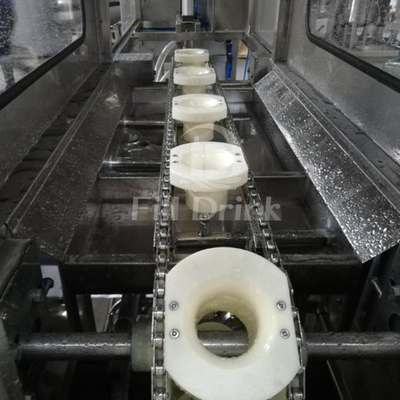

Product Photos:
Our Service:
The sample service
1. We can send you the video of the running machine.
2. Your are welcome to come to visit our factory,and see the machine running.
Customized service
1. We can design the machine according your requirements,at the same time we will give you our prefessional suggestion,as you know we have been in this industry for many years.
After-sales service
1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.
2. When you finish the Preparation conditions,our fast and professional after-sales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee untill they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4. We provide one year warranty
5. Well-traned & experienced staff are to answer all your inquiries in English and Chinese.
6. 24 hours for engineer response.
7. 12 Months guarantee and life-long technical support.
8. Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
