20000BPH Bottle Sorting Machine Dropping Groves SUS304 PET Plastic Bottle

20000BPH Bottle Sorting Machine Dropping Groves SUS304 PET Plastic Bottle

  • 20000BPH Bottle Sorting Machine Dropping Groves SUS304 PET Plastic Bottle
  • 20000BPH Bottle Sorting Machine Dropping Groves SUS304 PET Plastic Bottle
  • 20000BPH Bottle Sorting Machine Dropping Groves SUS304 PET Plastic Bottle
20000BPH Bottle Sorting Machine Dropping Groves SUS304 PET Plastic Bottle
Product Details:
Place of Origin: China
Brand Name: Fill Drink
Certification: CE ISO
Model Number: LPJ-24
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 20000USD per set
Packaging Details: wood packing
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Voltage: Customized Automatic Grade: Automatic
Condition: New Driven Type: Electric
Type: Bottle Sorting Machine Application: Bottle
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support Packaging Material: Wood
Warranty: 2 Years Material: SUS304
Capacity: 20000BPH Name: Automatic Bottle Unscrambler
Bottle Type: PET Plastic Bottle
High Light:

20000BPH Bottle Sorting Machine

,

Bottle Sorting Machine Dropping Groves

,

bottle sorting equipment SUS304

Dropping Groves 20000BPH High Speed Automatic Bottle Sorting Machine



Product Description:

The automatic bottle sorting machine is used to load the bottles into filling machine by air conveyor. Manually load bottles into the hopper, and then the bottle sorting machine will arrange the bottle and output one by one without crash.

The bottle sorting machine can be connected to the prodution line directly such as beverage filling machine. The capacity is from 8000BPH to 20000BPH. The speed is controlled by PLC. All the electric control and pneumatic components are world famous brand such as SMC / Festo, Mitsubihsi, Omron, Panasonic and etc.



Description:

1, Main motor is in frequency control;

2, No matter how the bottles drop into groves, the machine can upside the anti-direction bottles;

3, Special designed bottle dropping groves can be suitable for small round bottles (within 600ml bottles) without change anything;

4, New design of machine; easy operation and maintenance;

5, There is repair window set under the frame case ,it is for technician go inside for repair;

6, There is manual working process set inside ,so it will be easy for checking and repair ;

7, There are 48pcs of bottle groves inside the machine. This will help to enhance the production, and there is no bottle jam happening when ordering bottles.


What is a bottle Unscrambler?
   Bottle unscramblers are a cost effective way to easily load bottles on to an automatic bottle filling line. Whether you need a fully automatic bottle unscrambler or a semi-automatic loading turntable, NPACK has a solution that will make you more productive.


Product Paramenters:

Model LPJ-18 LPJ-20 LPJ-22 LPJ-24
Capacity(500ml) 8000BPH 10000BPH 12000BPH 20000BPH
Dimension(mm) ¢1800*2200 ¢2000*2200 ¢2200*2200 ¢2250*2200
Working positions 18 20 22 24
Number of layers Single Single Single Double
Weight 2500Kg 2800Kg 3000Kg 4200Kg
Air pressure 0.7Mpa
Air consumption 0.2M3/min
Main machine motor 1.1KW 1.1KW 1.5KW 2KW
Elevator power 0.55KW
Empty bottle elevator 3600*1300*1300mm

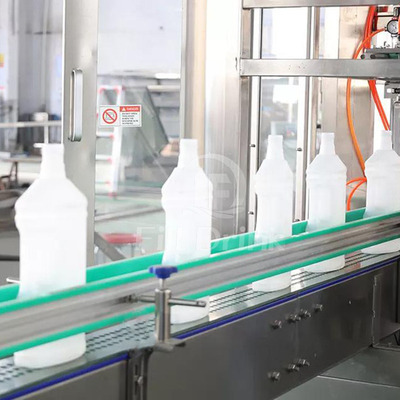

Product Photos:
20000BPH Bottle Sorting Machine Dropping Groves SUS304 PET Plastic Bottle 0
20000BPH Bottle Sorting Machine Dropping Groves SUS304 PET Plastic Bottle 1
20000BPH Bottle Sorting Machine Dropping Groves SUS304 PET Plastic Bottle 2

Our service:

The sample service

1. We can send you the video of the running machine.

2. Your are welcome to come to visit our factory,and see the machine running.

Customized service

1. We can design the machine according your requirements,at the same time we will give you our prefessional suggestion,as you know we have been in this industry for many years.

After-sales service

1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.

2. When you finish the Preparation conditions,our fast and professional after-sales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee untill they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4. We provide one year warranty

5. Well-traned & experienced staff are to answer all your inquiries in English and Chinese.

6 . 24 hours for engineer response.

7 . 12 Months guarantee and life-long technical support.

8. Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.

Quality Control

We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
